Every site owner wants to improve site performance. Let’s talk about that: broad performance concepts, specific tips, and our own software-based solutions.

  • Developer’s Corner: HoL Blocking and the Deadlock Hazard

    Developer’s Corner: HoL Blocking and the Deadlock Hazard

    Developer's Corner: Head of Line Blocking and the Deadlock Hazard

    SMITH: Doctor, it hurts when I do this.
    DALE: Don’t do that.

    – Smith and Dale

    This is the third article in the QUIC Header Compression Design Team series.

    Introduction

    To achieve the best header compression performance, it is tempting to have the compression protocol allow potential head-of-line blocking (HoLB). The idea is that HoLB will not occur most of the time, while the compression gain is significant. The first article of this series exposes priority inversion caused by HoLB and challenges the assertion that HoLB is rare. The second problem is that HoLB is a potential attack vector, wherein the decoder is tricked into using a lot of memory. One way to prevent such attack is to not read from the stream until the decoder can process the stream immediately. This approach creates a deadlock hazard. This problem is examined in this article.

    Note on Terminology

    If a header block B depends on an entry inserted by header block A, we say that B depends on A. Together, they are dependent header blocks.

    Problem Statement

    Writing dependent header blocks to stream out of order introduces the risk of a deadlock. There are two types of a deadlock.

    Single-stream Deadlock

    When dependent header blocks are written out of order to the same stream, the first header block cannot be parsed because it depends on the block that follows it.

    Multiple-stream Deadlock

    This type of deadlock happens when the out-of-order header block prevents the receiver from reading stream data that follows the header block. What makes it different from the regular HoLB case is that the sender cannot put the resolving header block onto the stream due to the limits imposed by the QUIC connection flow control.

    Scenario 1: Resend After a Reset

    One way a multi-stream deadlock can occur is when a header block must be resent after a stream reset. By the time the sender figures out that it needs to resend a header block, it may have filled all existing streams to the brim — which the receiver cannot drain — and is not allowed to stream more data.

    Possible Mitigation: Don’t Fill Flow Control Window

    One potential solution is always to leave some room in the connection flow control window. That is, leave at least the number of bytes required to resend all unacknowledged header blocks.

    There are downsides to this approach:

    1. It is not clear that the connection flow control window information is available at HTTP/QUIC level.
    2. The code complexity of the HTTP/QUIC layer increases — the user code can no longer write directly to the stream. These calls must be intercepted at HTTP/QUIC layer to ensure that the threshold is not exceeded.
    3. Most of the time, these are just wasted bytes that could otherwise be used. In other words, throughput suffers.
    4. Not filling the connection window may prevent the peer from sending WINDOW_UPDATE, resulting in a stall.

    Scenario 2: Out-of-order Write

    In general, a multi-stream deadlock can occur any time dependent header blocks are written to different streams — consuming flow control credits — out of order. If header block B depends on header block A, but is written to stream first, it may happen that header block A can never be written: If the receiver does not process stream B because of its application protocol rules (in our case, the receiver is avoiding memory exhaustion attacks), it is possible that the connection flow control prevents the sender from sending more data.

    Possible Mitigation: Don’t Do That

    “Well, don’t do that, then!” – might one say. This is a sound point of view: since the problem is of the application’s own making, it is up to the application to solve it. Nevertheless, the deadlock risk bears being pointed out, as it affects how a QUIC/HTTP implementation may be designed. For example, if the stream interface offered by a QUIC implementation performs internal buffering, can the application make sure that data on one stream gets sent before dependent data on another stream?

    Possible Mitigation: Make the Transport Do It

    My initial report to the Design Team prompted Martin Thomson to share the finding on the common IETF QUIC WG Mailing list. The resulting thread is large and makes for an interesting read. It contains several ideas on how such deadlock could be prevented by the transport, either by making the current priority implications stricter; or by introducing extra transport rules, exceptions, or overrides of various sorts.

    Summary

    It is natural to write dependent header blocks to streams in order. Not doing so may result in a deadlock. In particular, resetting streams forces the encoder to write header blocks out of order. Hence, the encoder must address the possibility of a deadlock in some fashion.

    P. S.

    The “don’t do that” versus “let the transport solve it” discussion is likely to resume at the upcoming Interim Meeting (Jan 23 – 25) in Melbourne, Australia. Watch this space for updates.

  • Developer’s Corner: Head-of-Line Blocking Allows Attacks

    Developer’s Corner: Head-of-Line Blocking Allows Attacks

    Developer's Corner: Head-of-Line Blocking Allows Attacks

    Protocol designers underestimate
    how badly people will implement
    their designs.

    – Adam Langley, Cryptographic Agility.

    Abstract

    Compression schemes that allow head-of-line blocking are targets for memory exhaustion attacks against the decoder. Detecting such an attack is not trivial. Without guidance, programmers are likely to produce vulnerable implementations. HoL blocking must either be prohibited at the protocol level or the attack mitigation mechanism must be specified explicitly in the compression specification. One way to avoid an attack is presented.

    Introduction

    In the previous article, we discussed how head-of-line blocking can cause priority inversion and vice versa. In the second part of the series, we will examine potential attacks made possible by head-of-line blocking.

    Problem Statement

    Head-of-line blocking causes the decoder to queue header blocks that cannot be decoded due to a missing dynamic entry. Under normal circumstances, this occurs because of packet loss or reordering. An adversary, however, may create this scenario artificially in order to get the decoder to queue data, thereby creating a denial-of-service attack.

    Here, a simple recommendation that the decoder use a timer is insufficient. The decoder must decide how much data it is willing to buffer and for how long. In other words, it must be able to differentiate between an attack and a regular packet loss/reordering situation. An incorrect determination may mean allowing a server to be DoSed; err the other way, and a valid connection is aborted.

    Sample Attack

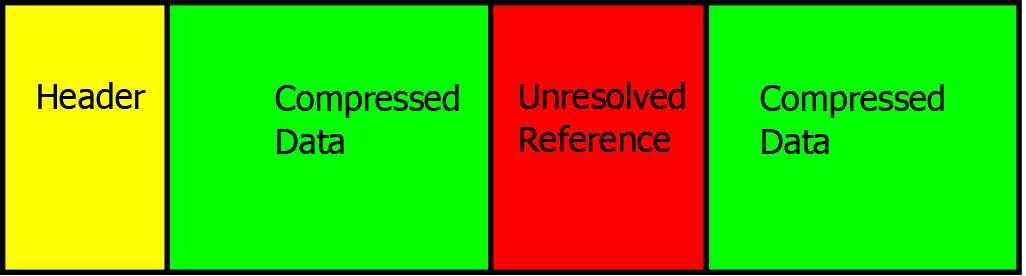

    The attacker’s strategy is simple: send header blocks that contain a reference to a non-existent dynamic entry:

    Head-of-Line Blocking Allows Attacks: Sample Attack

    The decoder cannot resolve a reference and has to wait — buffering data. More and more header block data is sent. To maximize the effect of the attack, the adversary may use more than one — potentially all — available streams.

    Mitigation Strategies

    Strategy 1: Simple Timer

    The decoder may associate a simple timer with each stalled header block. A simple timer has to be quite conservative in order to eliminate false positives. During that time, the attacker writes more data to each of the header blocks in a round-robin fashion, perhaps even resolving the blocking entry to reset the decoder timer while introducing a new unresolved entry at the same time. The amount of data queued at the decoder grows and grows and the server is eventually hosed.

    Strategy 2: Adaptive Timer

    A conservative timer means that the attacker has plenty of time to write more blocking data. An adaptive timer aims to reduce that window by using recent network conditions for determining a smaller timeout value. Besides RTT, it may need information such as the current CWND as well as callbacks fired when packet loss or timeout is detected. (This is digging pretty deep into the transport.) Even then, the adaptive timer must take into account that data could be lost multiple times as well as the possibility that the peer retransmits lost packets after it sends new data.

    This approach lessens the impact (although without further analysis I cannot state to what degree), but does not solve the problem. In addition, the possibility of a false positive grows.

    Strategy 3: Application-Aided Attack Detection

    The decoder does not know whether the headers it receives make sense to the application or whether they are just fluff the attacker uses to blow up its blocked queue. The application knows about the headers it uses and thus could be called upon to evaluate the headers’ fluff level, sort of like an email SPAM filter.

    This idea is not workable:

    1. While we (the IETF QUIC Working Group) do control the direction the transport layer takes, requiring all applications to provide extra logic to fight attacks is a non-starter.
    2. The attacker may simply target an application with special header blocks that would pass the checks.

    Strategy 4: Change Application Interface

    It is possible to change the decoder API to require the application to receive out-of-order headers, allowing the decoder to queue just the unresolved references. This is not good enough, either:

    1. The problem is just kicked upstairs — now the application must queue the data and decide when to abort the connection.
    2. If an indexed-name/literal header representation is used, with the index being unresolved, the decoder still has to queue the whole header field.

    Strategy 5: Unread Data From Stream

    One can imagine requiring the stream interface to be able to revert a read; alternatively, a peeking functionality may be provided. Either will allow the decoder to leverage the underlying stream’s queuing functionality instead of doing its own: when an unresolved entry is encountered, push back some data (or the whole header block). The advantage of using the stream for this is that the amount of data in the stream is limited by that stream’s maximum as well as the connection’s overall maximum.

    The first downside of this approach is that unreading may not always be possible, as the application must take off data from streams so that the connection can proceed.

    When it is possible, this strategy effectively exchanges a memory exhaustion attack for processor exhaustion attack. One can imagine an attacker now switching to feeding the decoder resolved entries and new data with unresolved entries, forcing it to read, decode, and push back the data.

    In addition, it is unclear whether the QUIC standard will require the transport layer to provide such functionality. (Consider, for instance, the implications of deferring sending a WINDOW_UPDATE frame while waiting for the application to “commit” to a read.)

    No Way to Detect An Attack

    None of the mitigation strategies above help the decoder to detect an attack in time. An odd (for some value of “odd”) sequence of incoming streams, header blocks, and dynamic table updates may be a perfectly valid use case. An attack detection mechanism built into the decoder must be sure that it is not going to break applications. Thus, one implementation may do it well and another may do it poorly. Chances are good that it is the protocol that will take the blame. One could add: for a good reason.

    What This Means

    Section 7: Security Considerations of RFC 7541 (HPACK) is five pages long — a quarter of the whole text! (Sans preamble, table of contents, and appendices). Obviously, the security of the header compression mechanism has been addressed thoroughly in the past.

    It is apparent that the compression mechanism that we (the Design Team) eventually present to the Working Group must either preclude this type of attack at the protocol level or offer a robust attack detection and mitigation that can pass a security review.

    There are two ways to address this:

      1. Not allow head-of-line blocking in the final proposal.
      2. Agree that the final compression proposal
        • limit HoL blocking in a quantifiable fashion and/or
        • include a robust attack detection mechanism.

    Limiting HoL blocking in a quantifiable fashion means that the compression mechanism guarantees that the amount of data that has to be queued at the decoder does not exceed some threshold.

    A robust attack-detection mechanism implies that it is possible to implement using standard programming techniques. It would be unreasonable to require that every decoder implement a sophisticated attack detection logic. (This would also be against the QUIC WG mandate that the decoder be simple.) In addition, the detection code must be relatively inexpensive (memory, CPU) to operate as part of the decoder.

    Potential Solution: Defer Reading

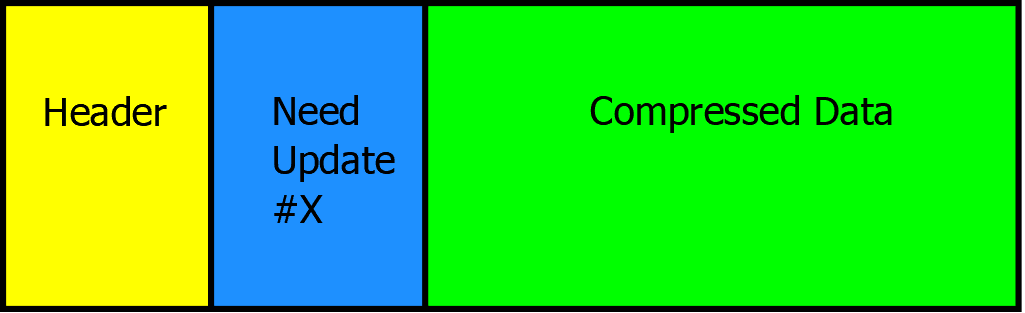

    One potential solution to this is to prefix header block data with information that would tell the decoder whether the header block could be processed in one shot given current decoder state. For example:

    Head-of-Line Blocking Allows Attacks: Potential Solution

    If the Update #X has not yet arrived, the decoder does not read any more from this stream. This leaves the headers in the transport. (This takes Strategy 5 one step further.) Such approach limits the amount of memory required by the decoder.

    The downside to this approach is that not draining the streams promptly may prevent the transport from operating efficiently.

    Summary

    Allowing HoL blocking and requiring the decoder to queue data and wait until it can be decoded is a denial-of-service attack vector. The simplest way to prevent such attack is to not allow HoL blocking at all. Deferring reading from affected streams is likely feasible but requires further analysis. GitHub issue #1011 was opened to track this.

  • Developer’s Corner: HoL Blocking and Priority Inversion

    Developer’s Corner: HoL Blocking and Priority Inversion

    Developer's Corner: HoL Blocking and Priority Inversion

    Background

    Producing a native header compression mechanism for QUIC is one of the goals of the IETF QUIC Working Group. The approach used in the Google QUIC (gQUIC) suffers from head-of-line blocking (HoLB) and is thus suboptimal. I had been interested in header compression for some time and, in November of 2017, I added my own proposal (QMIN) to the other two proposals already under consideration. The Working Group had empaneled the Compression Design Team and tasked it with coming up with a single proposal. Our team has six members:

    • Alan Frindell, the author of proxygen;
    • Charles “Buck” Krasic, the author of the QCRAM compression proposal;
    • Dmitri Tikhonov, the author of the QMIN compression proposal.
    • Martin Thomson, the co-editor of the QUIC Internet Draft;
    • Mike Bishop, the author of the QPACK compression proposal; and
    • Roberto Peon, the co-author of HPACK (RFC 7541).

    There are many design decisions that go into producing a compression mechanism. The resulting proposal (Internet Draft) will hopefully become a standard (RFC) one day. The rationale behind many aspects of a standard usually does not get included into RFCs: this is not what the RFCs are for. In this article — which may become first in a series of several — I will describe an interesting problem that could impact the choices the Compression Design Team makes.

    Introduction

    QUIC streams have priorities which the application layer can set. HTTP/2 and, consequently, HTTP/QUIC use priorities to improve UX. Usually, priorities are assigned by content type: HTML has higher priority than CSS, which in turn has higher priority than images. In general, an application using the protocol may assign any priorities to suit its needs.

    Problem Statement

    In gQUIC, the header blocks are delivered on a separate, high-priority (higher than all other priorities on the connection save the HANDSHAKE stream), unbounded HEADERS stream. The HTTP payload-bearing streams’ priorities are used to select which HTTP message to process. Lost or late packets on the HEADERS stream may cause other streams to wait. (This is the head-of-line blocking problem that the Design Team is trying to solve.) The HEADERS stream itself does not depend on other streams and it is always processed first.

    In the current IETF HTTP/QUIC draft, on the other hand, the header blocks are part of the request/response stream itself. In the case where the header compression protocol mandates that the decoder be able to wait on unresolved entries (this is the decoder HoL blocking), the compression protocol and the QUIC protocol can actively hinder each other in the following manner:

    1. HoL blocking can cause priority inversion; and
    2. Priority inversion can cause HoL blocking.

    HoL Blocking Causes Priority Inversion

    This situation can occur when a server sends two responses (let’s call them A and B) where the header block of a higher-priority response (for instance, A) references entries first inserted in the header block of the lower-priority response.

    Example:

    HoL Blocking Causes Priority Inversion

    Here, the server does the correct thing — since it got the B request first and the A request has not yet arrived, it encodes and sends the response, even though a higher-priority request is coming.

    The client, too, does everything correctly: after receiving the responses, it processes the higher-priority A response first.

    Stream Priorities Cause HoL Blocking

    Priority-induced HoL blocking can happen whenever there is packet loss. If a high-priority response A depends — via its header block compression — on a low-priority response B which gets lost, the server will choose to send the higher-priority data on stream A before retransmitting the lost B response. The client will have to buffer the whole A response or fill the A stream buffer before it receives the required B response and can proceed.

    The example is a variation of the above when the B response gets lost:

    Stream Priority causes HoL Blocking

    The server’s choice to send higher-priority stream data is in accordance with the QUIC recommendation. It does everything correctly.

    This scenario is worse than the first, because the client cannot use the high-priority response (say, render an HTML page or compile JavaScript) for as long as it takes to fill the stream buffer.

    Attention: This is worse than the original gQUIC HoL blocking problem, for the gQUIC server would choose to send the missing header block first.

    More Potential Troubles

    Above, only static priorities are considered. QUIC allows stream priorities to be adjusted dynamically. An implementation that changes stream priorities based on some performance metrics — for example, as an indirect result of priority inversion — may only make the problem worse.

    Summary

    Adding stream dependencies in the form of header block dependencies in the decoder introduces a conflict with the QUIC stream priorities whenever there is packet loss or reordering. This conflict can cause HoL blocking, resulting in a markedly degraded user experience. Since both packet loss and packet reordering happen constantly (the former is how congestion control works), the problem will be ubiquitous.

    These issues can be solved by designing the protocol so that either

    • Response or request headers can be processed immediately; or
    • Operations that modify the table state are sent on a different, special-purpose stream (or streams).

    Text by: Dmitri Tikhonov
    Graphics by: Mark Zou

  • Developer’s Corner: Why Use LiteSpeed QUIC Library

    Developer’s Corner: Why Use LiteSpeed QUIC Library

    Projects and individuals have expressed interest in having a standalone QUIC library. The newly-released LiteSpeed Client Library is a good choice for many applications.

    When it comes to selecting a working QUIC library, one has few choices:

    • lsquic — standalone QUIC client library;
    • proto-quic — standalone QUIC client and server library; and
    • quic-go — standalone client and server library.

    quic-go may be inconvenient to incorporate if you do not use the Go programming language and I will not comment upon this library further in this post.

    Since the time it was first released in April of last year, proto-quic has been utilized in some projects. Now that Google no longer maintains proto-quic, these projects have a choice to make: maintain proto-quic, or their derivative thereof, themselves or switch to the newly-released LiteSpeed Client Library. For those that have not yet decided which QUIC library they want to use, I list the arguments in favor of the LiteSpeed implementation below:

    LSQUIC Is Actively Maintained

    The LSQUIC Client Library is maintained, whereas proto-quic is not. Integrating Chromium’s QUIC code into your program requires extracting the relevant bits from Chromium and updating them as new QUIC versions appear. On the other hand, the LSQUIC Client Library is a standalone component that we plan to maintain going forward.

    LSQUIC Is Future-Proof

    We use this code ourselves in our own products. We will continue to support the current line of QUIC versions (Google QUIC) and add support for the upcoming IETF versions of QUIC. We are not abandoning this code.

    LSQUIC Is C, proto-quic is C++

    LSQUIC is written in C99, proto-quic in C++11. The LSQUIC Client Library is easy to integrate into both C and C++ projects.

    LSQUIC Offers Versatile APIs

    Not tied to an event loop

    Our QUIC library is not tied to any specific event loop. In fact, it is not tied to an event loop at all — you do not have to use an event loop to drive the library.

    BYO networking code

    LSQUIC does not do its own networking. Instead, it provides a simple “packets in / packets out” interface. This makes the library quite flexible. And portable, too.

    LSQUIC Consumes Fewer Resources

    proto-quic consumes more CPU and memory than the LSQUIC Client Library. This is mainly due to two factors:

    1. proto-quic is part of Chromium, the market-leading browser. As a user application, its job is to provide features to the user (usually just one user on the machine); resource use is a secondary consideration. The LSQUIC Client Library, on the other hand, is born from LiteSpeed’s implementation of QUIC on the server side. We designed the library with scalability in mind.
    2. Pioneering — and experimental — work on QUIC implementation takes place in Chromium. proto-quic code is full of special cases for various experiments and options that are not used in production. The LSQUIC Client Library implements features and options strictly as required by the protocol.

    LSQUIC Codebase Is Small

    The LSQUIC Client Library is approximately 74,000 lines of code (with the core functionality only about 36,000 lines), as counted by wc(1), while Chromium’s QUIC code size is 156,000 lines of code.

    I hope this was convincing. All that’s left is to do this:

    git clone https://github.com/litespeedtech/lsquic-client.git

    From the cutting edge, until next time,

    LiteSpeed QUIC Team.

  • LiteMage 2 for Magento 2

    LiteMage 2 for Magento 2

    In a previous blog post, we briefly discussed the release of LiteMage 2 for Magento 2 and its improvements over Varnish and Magento 2’s built-in PageCache module. Today, I’d like to elaborate on a few of those improvements.

    Simplifying Your Stack

    The above diagram is a comparison of the basic setup for Magento using Nginx + Varnish and LiteSpeed Web Server (LSWS) + LiteMage Cache. You can clearly see that with just the basics on both sides, your Magento stack’s complexity is halved when you switch from Nginx + Varnish to LSWS + LiteMage. As is also mentioned above, flush instructions cause extra overhead by design in Nginx + Varnish while LSWS + LiteMage include the flush instruction in the same response header, meaning no extra cost when flushing the cache.

    Performance

    We’ve received a very positive response to LiteMage 2. This is, in part, because LiteMage 2 completely replaces Varnish, supports the same configuration for publicly cached items, and improves on Varnish’s performance.

    LiteSpeed + LiteMage outperforms Nginx + Varnish:

    • reducing server load,
    • cutting CPU Usage,
    • and running more transactions per second.

    We also have plans to further improve upon Magento 2’s performance, providing an even bigger performance gain when compared to Varnish.

  • Diagnosing Performance Issues: Using strace with PHP

    Diagnosing Performance Issues: Using strace with PHP

    Problem Scenario

    Home page is exhibiting slow load times (40 to 50 seconds).
    Server logs log/stderr and log/system do not indicate unusual behavior.

    (more…)

  • Cache Makes the World Go Round

    Cache Makes the World Go Round

    First, we would like to thank each and every one of you for trying out LiteSpeed Cache for WordPress. We’re proud to see that there are 30,000+ active WordPress sites running LiteSpeed Cache. There was an enormous effort to make this plugin the easiest and most efficient caching solution for both WordPress users and hosts. Our latest release of 1.0.14.1 includes some exciting User Interface changes that hopefully simplify things for the administrator/user.

    (more…)

  • Why is Benchmarking WordPress so Hard?

    Why is Benchmarking WordPress so Hard?

    As promised, we’re going to be giving the hosting industry a tool for doing a proper “benchmark” as a means of evaluating your own WordPress capabilities in a standardized way. I’m going to start this post with a few definitions, since there has been a lot of misuse of the words and language in best practices.

    The essence of any meaningful benchmark is repeatability. If your test results are changing every time you run them, you are not running a benchmark. A benchmark environment is very tightly controlled and the results should be identical every time you run the test.

    Some people may want to compare environments. In order for the comparison to be valid, you must have control over both (or all) of the environments to make very broad conclusions. You may be able to make very specific conclusions, but you need to account for the things that you did not control in your test, and you ABSOLUTELY need to be able to explain any anomalies in the data.

    Case in point: It is fairly popular for hosts to run gtmetrix or webpagetest and suggest grandiose claims like “A is 10X faster than B”. However, doing so overlooks simple things like A might be much closer to the geographic location than B. If you are running a test from Australia against a site hosted in Australia and comparing the results against a completely different website hosted in Indiana, it is near impossible to draw any scientifically valid conclusions. The only realistic statement you might be able to make is that users in Australia get better performance from site A than users in Indiana get from a completely different site B… and even then, you’d be overlooking the variability of internet latency, possibilities of DDoS attacks impacting one site or the other while you were testing, peering issues, etc…

    So, how do we benchmark?

    Well, it starts with an environment, an understanding of what should happen (Benchmarking 101) and some questions. Let’s recount our last two weeks or so of preparation.

    Yes, I said two weeks…

    For this exercise, LiteSpeed was looking to get an idea of how our LSCache plugin for WordPress would compare to the most common Apache + WordPress cache solution (WP SuperCache). As it turns out, I also write a WordPress blog, so we downloaded my blog via WordPress’ export function and installed it in both environments. Throughout this blog post, I will mention assets that you will be able to download from a repository that we are building so that you can run the exact same tests that we run in any environment you’d like. The entire process will be documented in such a way that you should be able to follow it and modify it to fit your own needs, should you desire.

    When you are preparing to publish, it really helps to keep a notebook. It’s also an extremely valuable exercise to include various members of the team to build consensus and help evaluate “what happened” when you run a test. As a side note, we also uncovered two or three things that didn’t work the way we expected in our admin panel, and managed to get them fixed. Who knew that benchmarking could uncover bugs? 🙂

    My team for benchmarking includes:

    Kevin (Lead WordPress plug-in developer)
    George (LiteSpeed WebServer Architect)
    Mike (Lead WHM plug-in cache management developer)
    Rob (Social Media/Documentation lead)
    Jackson (Support/environment Manager)
    Jon and Mark (Test Environment admins)
    Steve (me… performance benchmark guy or marketing/BD lead…depending on the day)

    So, why is benchmarking a big deal here at LiteSpeed?

    We want to be the fastest solution for the Internet. If we are not, we need to understand where and why to continuously improve our products. This is an all-hands effort because it supports our core mission, and there is nothing more important to our company than being the best. (OK,I’m going to take the marketing hat off and go back to engineering 🙂 )

    Our test tool of choice for benchmarking is LoadRunner. It is a tool that I have been personally using for 17 years, and I have a wealth of contacts in industry if/when I need help. More importantly, I know that LoadRunner works in all of the possible test conditions and I don’t need 5 tools to do my work. LoadRunner Community Edition is completely free for anyone to use. We extend it with SiteScope for LoadRunner Community Edition to gather system level data while running the test, but we also have our team looking at traditional tools like TOP, Apache logs, etc. to do sanity checking.

    Sanity checking?

    Sanity checking is a double blind testing method of flushing out errors in your test environment. As an example, Jon and Mark will shout out the Server Load numbers from the CentOS console while I validate that the SiteScope data generally agrees. Mike will open a browser window and randomly click on the WordPress articles in our test site to see if the results match what our tool is reporting.

    And here is the rub: They do not always match. When they do not match, you need to fix something.

    And now you know why we’ve had 7 people working on this off and on for two plus weeks. We’ve been fixing problems in the test environment in preparation to run the benchmarks. Our last runs were almost “clean”. What does clean mean? Clean means that there wasn’t anything in the data that couldn’t be easily explained and didn’t follow the mathematical model exactly. Clean also means that we are getting the exact same results when we re-run tests.

    Clean means repeatable. (Every benchmark in this article was run multiple times to confirm that the results did not change between runs)

    We started with a WordPress (version X) site running on CentOS 7 [2 CPUs with 4 cores and 4GB of memory] (Full spec hyperlink). The site contains a home page that greets the visitor and 15 articles. I wrote a script that simulates someone coming to the site, and then randomly selecting an article to read. In our load testing software, we have the ability to run up to 50 concurrent users. Developing the working script took less than an hour, and a link to it along with the various scenarios we execute and result sets will all be provided at the bottom of this post.

    So why has this taken two weeks?

    Well… this might take a second. Before you benchmark WordPress, you need to benchmark your script and your test environment. That’s right. Benchmark your testing software first… and flush out environment issues. As an example, our load generators were Windows 10 VMs and our throughput was terrible because they were consuming a lot of CPU. In addition, the network bandwidth would stop climbing at around 200MB/s. As it turns out, Windows Defender was scanning every packet request which caused the high CPU utilization and limited bandwidth…somewhat.

    overcooked-load-generator

    Next, investigation revealed that there was another bandwidth issue from outbound calls to Google for fonts in the page, saturating our internet connection. We turned off font calls and other outbound calls in the WordPress theme and our load generators scaled better. We tuned the TCP stack and were soon able to generate 4Gb/s per load generator, which gave us the ability to sustain 8 Gb/s. While we were connected to a 10Gb/s switch, we believe there was some bandwidth loss due to virtualization and we were never able to generate the full 10 Gb/s. As an independent verification step, we also ran iperf and got similar results. Whatever the cause, we know we are limited to 8Gb/s maximum.

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/network8-9Gb/Report.htm

    throughput

    When an internet user visits a website, their browser will open multiple connections to speed up the movement of data. Some tools bypass this to conserve resources, only opening one connection to download a cached page, but then avoid sending the content via the other connections simulating a browser. We will run a test this way to illustrate why the results are not very meaningful. Most testing tools also allow you to make changes to the run-time settings that can impact what you are testing and what the subsequent results mean. We’re going to discuss those settings and how we incorporate them into our benchmarks.

    That’s right. Plural. Benchmarks.

    There is no one single benchmark that you can run that explains everything about the system. You will always be constrained by what is built, usually not by what is possible. We run a multitude of tests as a suite for describing system capabilities, and with good reason.

    It is prohibitively expensive to test maximum capabilities.

    WordPress is approximately 30% of the internet, so I will assume that they’ve done enough work to be able to build a low volume website like my blog. However, when a WordPress site has a significant audience, performance is not guaranteed. Like any PHP application, WordPress will bog down when you have a lot of users hitting PHP, so caching is popular to offload PHP workload. Instead of running 10,000 users in a test, which would require expensive licenses and hardware to drive the load, many people simulate via a high transaction rate. This method is not perfect, but it does allow you to understand transactional throughput. Transactional throughput is not user load, and if you see a benchmark that suggests that the two are equivalent, you should probably not pay too much attention to it.

    Since this benchmark is about WordPress and two web server/caching options, your first thought might be to batter both systems with your max load and see what happens! [hint: this isn’t very useful- unless you are trying to convince someone that they shouldn’t do it…]

    An example of a poorly defined test plan reads something like this:

    “We ran a 50 user test against two WordPress environments to see which one performed better.”

    In order for a requirement to be testable, you need to state a lot more specific information. Our example definition below remains incomplete, but for the purposes of this article will serve to illustrate how much further one needs to go to become “testable”

    We’re going to break our requirement into components, and then make sure that the tooling and the environment are set-up correctly to handle the test we are attempting to run:

    A Test Plan comes to Life:

    Simulate 50 concurrent users running a script that hits the WordPress landing page and then randomly selects a blog link to read. In our scripts, lr_transaction statements capture transaction times for pages and store the results for analysis. We will measure the WordPress Home Page and then a randomly selected blog post throughout the duration of the tests we perform. We’ve created two variables

    {SourceURL}, which can be edited to store an IP or server name should you wish to test in your own WordPress domain.

    {RandomLink}, which contains the 15 articles and randomly picks one per user per iteration. If you wanted to simulate a larger collection of cached objects, you could create more articles and simply append their paths to the text file that serves as a data repository for this variable.

    While think time was recorded at 6 and 60 seconds, we have edited it to 1 second in both cases to gather more data rather than having the system sit idly for 99% of the test.

    loadrunner-script

    During this suite of tests, we will:

    Turn off HTML Parsing to avoid downloading resources with no think time to test the cache’s capability to create and close connections.

    Turn on HTML Parsing to download resources with no think time to simulate a high volume event and to test the cache’s ability to work with a server load of a real WordPress site serving pages from cache.

    Turn on HTML Parsing to download resources and replay think time typical of a real WordPress user to simulate a real world workload on a cache.

    Assumptions:

    1. System should not fail to respond to any transactions.
    2. All pages will be served from cache (cache warm-ups prior, if necessary).
    3. Page load speeds should remain relatively consistent for the duration of the test.

    Since both environments will be exercised with only cached content, every request will be served from cache in both Apache and LiteSpeed. During the test, we will attempt non-cached transactions like adding comments or logging in to the WordPress Admin panel and observe the effects the load has on the overall system. We will use the same script in the various exercises, only changing the run time settings to simulate different conditions.

    In our tool’s runtime settings, we have the option to turn off the parsing of the cache served page so that it does not download resources, or pull them from the local browser cache. Simulating the browser behavior of downloading resources puts more load on the server, and also helps us measure throughput or the ability of the web server/cache to move data across the network.

    runtime-settings

    In addition, when the script is recorded, it saves the amount of time a typical user spends reading the page into “think time”. As you might imagine, an average WordPress post has a significant amount of think time in it. By ignoring think time, we get a much higher load than replaying think time, which can help us stress test the environment… but is that what we want to do? [Maybe.]

    think-time-options

    Debugging and Benchmarking Begin

    I’ve already discussed the model in the original performance blog (Benchmarking data looks like this…), and as a reminder, the tests should basically draw straight lines. When they do not, something is broken. To start, we want to know the characteristics of a single user running with no think time and downloading resources, since this will be our maximum load.

    Both Apache and LiteSpeed perform about the same in these conditions. A round estimate for throughput is that each user will consume about 90 MB/s or 0.4 Gb/s of bandwidth and generates about 1500 hits/sec. With a maximum of 8Gb/s of available bandwidth, we know that we cannot use all 50 users to run our test (rough estimates are ~20 users will saturate the network). This graph confirms that the network saturates around 5 minutes mark and somewhere around 20 users because the throughput no longer increases as the number of users grows.

    throughtput-saturated-vusers

    Let’s do some quick math to double check our work.

    If we run one user, we see about 11ms response time, which would translate to approximately 90 requests for any page per second (1s/11ms). If you look at most of the articles you’ll see that most contain “about X-teen resources” per page, so your hits per second should be 90 times X-teen, which matches our 1500 hits per second.

    Here is the most important point: THIS MATH IS ALWAYS TRUE. It does not matter if the site is WordPress, Magento, or just PHP. Hits per second = (1s / single user page time) * average number of resource per page. If you turn off the downloading of resources, your average number of resources per page will be one (just the cache reply) …but the single user page time will probably drop to 1-3 ms.

    Believe the math.

    Low Load Baseline (5 users)

    When you are benchmarking, you are not trying to stress a system to its breaking point. You only want your system to respond as fast as it can, and that stops happening when you start approaching breaking points. While a single user response time is good for some things, it doesn’t create any of the deadlock conditions that a multi-user baseline will. Since LiteSpeed and Apache should both handle 5 users without issues, we start with 1 user and ramp up to 5 users by adding 1 user every 30 seconds. In a second I’ll explain why this didn’t happen the way we expected.

    We use the script to hit the test site for a minute or two, just to make sure that everything is cached, then we start a 5 minute test cycle. During the baseline tests, we planned to run three slightly different scenarios:

    Scenario #1: cache hits only, think time of 1 second between pages, downloading of resources
    Scenario #2: cache hits only, no think time, downloading of resources
    Scenario #3: cache hits only, no think time, no downloading of resources

    When it is done, we swap the LiteSpeed configuration for the Apache configuration… Lather, rinse, and repeat.

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/apache-baseline/Report.htm

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/nginx-baseline/Report.htm

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/litespeed-baseline/Report.htm

    Replay Think Time/Download Resources

    Completed Trans. Hit/s Throughput Tx Home/Random Server Load
    LiteSpeed 1733 70 3.3 MB/s 0.007/0.010 0.026
    nginx 1778 60.5 3.7 MB/s 0.011/0.016 0.157
    Apache/WPSC 1776 70 4.3 MB/s 0.013/0.015 0.055

    No Think Time/Download Resources

    Completed Trans. Hit/s Maximum Throughput Tx (s) Home/Random Server Load
    LiteSpeed 221 K 7511 674 MB/s 0.007/0.009 1.12
    nginx 130 K 4428 501 MB/s 0.013/0.014 1.37
    Apache/WPSC 105 K 3568 424 MB/s 0.015/0.019 13.48

    What happened to the third test (no think time, don’t download resources)? We decided that there was very little reason to run it, because there is a problem that surfaces in this first test, which completely caught us off guard. Apache cannot scale in this environment past approximately 3200 h/s. Period.

    Notice the wording “in this environment”? That is a very specific statement. It is only relevant to this 2 CPU server, but we have seen the exact same behavior with other applications- so it has nothing to do with WordPress. We are saying (with a high degree of confidence) that Apache becomes CPU bound around 3200 hits/sec… regardless of what the hit is. The same behavior occurs at 3200 hit/sec with downloading full pages or just cache responses in a 2 CPU environment. It is a limitation of Apache and can only be addressed via adding more resources.

    If you look at the data with think time enabled, even a minimal 1s delay between requests drops the transaction rate to only 70 hits/sec. A hit is any request for any object (static or cached) being served by apache and/or LiteSpeed. The difference between the two in a low volume environment is negligible. If your WordPress site does not get a lot of traffic, you will not see any improvement running LiteSpeed.

    But, please, keep reading…

    The second test actually exposes the Apache problem. By removing the think time, you can simulate a much higher workload with the same number of users. The LiteSpeed Server delivers 8200 hits/sec, while the Apache workload peaks at about 3200 hits/sec (You’ll see this in the final data sets too). Take a look at the server load. Apache is running at 8X capacity, which results in requests being briefly queued by the processor and the longer response times in both Home Page and Random Page transactions.

    For the record, LiteSpeed capped at 16,000 hits/sec, but we were at the limits of everything (bandwidth, load generation capacity, LiteSpeed capacity…). There were peaks that were higher, but 16K sustained was held for nearly 10 minutes.

    Now, normally, this is the part in the effort that vendors would generally throw a celebratory high five and proclaim their awesomeness… but, let’s hold the applause. When you are 5X as scalable as your competition, that’s huge!

    Except the data tells a weird story.

    Under no load conditions, LiteSpeed and Apache perform about the same.

    AND…

    Under 1X vs. 8X load conditions, LiteSpeed and Apache perform about the same.

    And, that is 100% correct… Almost.

    While the Apache server is running at 8X load, you see a slight increase in the time that the pages get served by the cache. 5ms. Throughout the test, we would open browser sessions and independently hit pages on the site. Guess what. They were fast.

    The one hidden nugget in all of this is that the server load is not the same. The cache is fine, and able to respond, even though the server load is high. However, all uncached requests are occurring against a server that is dying. We tried logging into the root of the server, the WordPress Admin panel, and adding comments. Guess what. They were not fast… 30 seconds or more.

    This also explains why I hold webpagetest, gtmetrix, et. al. in such disdain. They test at low volume and they ignore the effects on the back-end web server. If you ignore load conditions and back-end system resources, everyone gets a trophy… Until the real world comes for them. Interestly enough, Internet Sucuri published a blog post about Layer 7 DDoS attacks and you’ll notice that the median attack size is very similar to… The Apache limit we demonstrated earlier. (Sucuri Layer 7 DDoS Blog). If nothing else, LiteSpeed buys you 4-5X more Layer 7 DDoS resiliency.

    So, what next?

    We better run a much bigger load against both servers to see what happens!

    We will rerun scenario #1 and scenario #2 with 5 users being added every 30 seconds in an attempt to reach the limit of 50 users in both scenarios. Scenario #2 may cause issues.

    Scenario #3 is officially retired (Siege-like) because …well, it doesn’t make sense. Please understand that if you are using Siege, you are not requesting resources unless you explicitly code every object on the cache page into a get request for every page within your WordPress site. You can use Siege, but you’d need to write a script that called the cache page, and then called every bitmap, CSS, and javascript object on the page to represent a user with a browser. For every page. Just not maintainable.

    Without downloading resources, you might as well test “hello world”…

    Replay Think Time/Download Resources

    Completed Trans. Hit/s Throughput Tx Home/Random Server Load
    LiteSpeed 21292 503 32 MB/s 0.013/0.026 0.205
    nginx 21484 535 33 MB/s 0.012/0.014 0.60
    Apache/WPSC 21122 527 39 MB/s 0.022/0.037 1.961

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/apache-with-think-time/Report.htm

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/nginx-with-think-time/Report.htm

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/litespeed-with-think-time/Report.htm

    No Think Time/Download Resources

    Completed Trans. Hit/s Throughput Tx (s) Home/Random Server Load
    LiteSpeed 334K 12K 738 MB/s 0.048/0.055 1.6
    nginx 236K 6K 363 MB/s 0.090/0.094 1.8
    Apache/WPSC 93K 3400 300 MB/s 0.217/0.151 91.0

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/apache-no-think-time/Report.htm

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/nginx-no-think-time/Report.htm

    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/litespeed-no-think-time/Report.htm

    MAX
    litespeedtech.com/packages/benchmark/LoadRunner/WordPress/2016/litespeed-saturated/Report.htm

    Once again, with think time, both environments performed about the same. However, Apache running on 2 cores performance is saturated and becoming CPU bound, even though the transaction rate is nowhere near the 3200 hits/sec limit. Whenever you begin to run out of resources, the natural response is to add more resources. However, Apache’s CPU consumption is not linear at all, and doubling the amount of CPU’s would not double capabilities.

    Both environments performed well and most likely would be good choices for low volume WordPress hosting, but there is nothing equivalent about them. While 200 ms may be acceptable, a server load of 91 is an operations nightmare. LiteSpeed Web Server is seeing DDoS level hit rates, and still performing very well.

    We know that you can build sites that support many more readers by adding additional Apache servers, or perhaps larger servers. We’re a little disappointed in the fact that we cannot really “go big” on this because we all want to know how far we can go here at LiteSpeed. We’re always looking to push the engineering further.

    Drawing conclusions

    Final thoughts from a “benchmark suite”…

    Going through this exercise has been very helpful. We discovered some things we didn’t know. We confirmed some things that we thought we knew. We also corrected some things we were doing wrong.

    My personal takeaways are:

    While LiteSpeed would love to have every WordPress user as a customer, the truth is that if your site has low volume, then you shouldn’t expect much of a performance gain from running our software. We are working on some things that will change my opinion on the topic greatly, but for now, LiteSpeed really only helps at higher volumes and will likely help you if you are a Layer 7 DDoS victim.

    Assuming that you are operating a high volume WordPress hosting business, the case for LiteSpeed is pretty clear. Shared hosting providers can easily double their WordPress hosting capability by upgrading to LiteSpeed. If you write a WordPress blog with light traffic like mine, you are likely paying very little (I’m paying nothing), but you are also very likely grouped with hundreds of people like me in the shared environment. The aggregate load of these hundreds of WordPress blogs could result in death by a thousand paper cuts, or even worse, a hundred support calls/tickets from angry WordPress bloggers.

    As a final test, I turned up all of the real user features within the tool (realistic think times and browser side caching) and I reran 50 users against the Apache server. The peaks were about 70 hits/s and 7MB/s. This underscores a very important point. Real user loads are significantly lower than simulated loads because real users need time to think, which in turn gives the server time to think. Assuming that the math is a straight line, you could safely scale Apache to nearly 40X this real user load, or about 2000 active users reading WordPress articles. Similarly, the math for LiteSpeed would suggest about 20,000 real world active users interacting with a WordPress server in typical fashion. Real world active users do not mean concurrent users, nor logged in and browsing – more an audience/community sizing guideline.

    However, it is more likely that you will run out of inbound bandwidth at the host long before hitting the physical limits of the Apache server. A 10Gb/s port on a switch can only send as much data as the smallest network can accept before delays get introduced. Remember that a host only controls what happens inside of their four walls. They do not control the size of the content nor the network on the other side of their switch. One of the first things we fixed was the image sizes in our WordPress test server, because most were 4MB (mostly because I upload them from my phone and I’m lazy). You will ALMOST ALWAYS run into a bandwidth issue as a hosting provider first if your data center wasn’t designed by monkeys.

    Bandwidth is finite and expensive. Even the smallest servers are capable of consuming all of your bandwidth, which means that the bandwidth bottleneck will begin to protect the server by throttling the requests to the server. If you don’t have any idea of how much bandwidth per WordPress user your site consumes, forget about making any other claims. In addition, if you haven’t tested it all the way through, you probably missed the opportunity to tune your infrastructure.

    From testing for two solid weeks, we were able to flush out some network and server issues that degraded our test environment. We kept copious notes and developed methods and procedures to maximize performance by 400% over the two weeks. Just because Siege suggests that you can move 8Gb/s against your test environment, doesn’t mean you can actually do so and you don’t actually know for sure until you try it.

    In looking at Siege output, I noticed it had run for X number of seconds, and moved Y MB. In the end, it calculated that the network had a max rate of transfer of Z Gb/s. The only way you arrive at that conclusion with that scale is by calculation. (MBs cannot become Gb/s any other way). What this means is that you’ve never actually tried to move that much data, and you are assuming that everything is setup correctly and it will just work. Hypothetically.

    Our testing suite removes hypothetical to give you real world results that you can use to evaluate where you stand against the physical limits of your infrastructure. It doesn’t matter how expert you are, there are mistakes and/or misconfigurations that can be discovered via testing to improve performance. We are willing to share ANY and all of our test assets and expertise to help you assess LiteSpeed. (email: santonucci@litespeedtech.com)

    Keep an eye out later this year when we upgrade our WordPress cache to do some game changing things (and of course, the supporting benchmark blog post 🙂 ).

  • Prepare For the Holidays With LiteMage’s Newest Feature: Site Visitor Acceleration!

    Prepare For the Holidays With LiteMage’s Newest Feature: Site Visitor Acceleration!

    imagenov82016

    It’s no secret that the slower a page loads, the more likely a customer is to leave your site. With the newest enhancements to LiteSpeed Web Server and LiteMage Cache, you can rest easy knowing that all your visitors will experience the fastest load times ever!

    (more…)

  • Democracy and the Benchmark

    Democracy and the Benchmark

    It seems like we’re entering the YouTube era of benchmarking.

    aliens

    You know how you can go on YouTube and find someone who knows almost nothing about the subject they are posting a video about? Well, benchmarking these days is kind of like that…

    (more…)
