Push this button to melt this protocol!
– Brian Trammell, 2/5/2020

The QUIC Working Group Interim meeting in Zurich took place on February 5 and 6 (Wednesday and Thursday). This is the second article in the two-article series – the first described the Interop that ran earlier in that week. My recap is not exhaustive; see the official minutes for the full list of the agenda items.

Interop Status

At the beginning of Wednesday’s session, Lars Eggert (one of the co-chairs; NetApp) updated the Working Group on the results of the Interop.  In short: we’re still playing catch-up with the changes in the draft; getting the transfer performance batch (the “T” letter) is tricky; and very few implementations support the ECN feature.  (lsquic does support ECN, which is an optional part of the protocol.)

Varinting the Transport Parameters

The discussion began with one of the more contentious issues (#3294): converting the way transport parameters are encoded.  In the current draft (25), they look odd because they do not use variable length integers; almost everything else in the transport draft uses varints.  The purist point of view, which David Schinazi (Google) advocated, is that we should make the draft more uniform and use variable integers throughout.  The opposing view (and my initial position) is that this is a cosmetic change and it is too late in the process to make cosmetic changes.

The argument then moved on whether the limitation of 64K possible transport parameters imposed by the current encoding is important.  More experienced members of the WG stated that this is indeed the case. A smaller set of codepoints leads to registrars being very protective of the unallocated values. A practically infinitely large (2⁶² – 1) set of codepoints would make these concerns moot.

Having considered these, I switched my preference from “no” to “neutral,” even though this, in effect, becomes wasted work.  In addition, we would have to support both encoding types when doing both ID-25 and ID-26 drafts.

In the end, the consensus was to make this change, and so we are again changing something significant in the draft.  To lessen the impact of this change, the editors promised to release ID-26 promptly, so that we have time to implement it before the Vancouver Interop in late March.

Two related issues were briefly touched upon.  First, should there be a requirement to detect duplicate transport parameters?  Second, should the transport parameters be required to be sorted? Certainly, duplicate detection is trivial when parameters are sorted.  Nevertheless, both these proposals were shot down. Martin Thomson (Mozilla) pointed out that the lack of ordering requirements for TLS extensions turned out to be integral for making possible backwards compatibility with TLS 1.2.

CID Retirement Timeout

Gorry Fairhurst expressed his concern with the lack of clarity regarding the wait time before a connection ID must be retired in issue 3215. The discussion revolved around just how long an endpoint could wait after receiving a NEW_CONNECTION_ID frame before issuing a RETIRE_CONNECTION_ID in response. If this time is too short, the tarrying endpoint risks receiving a stateless reset when it tries to use the connection ID that was supposed to be retired. Igor Lubashev (Akamai) and a few others pointed out that forgetting a stateless reset token and sending the RETIRE_CONNECTION_ID frame for the corresponding CID do not have to happen at the same time. That is to say, the risk of an aborted connection due to a stateless reset is minimal.

As this discussion wore on without resolution, Lars preempted it. He asked for a self-organized lunch group to come to a consensus during lunch (naturally). At lunch, it was resolved to close this issue with no action (that is, no design change) and potentially a new editorial issue to clean up existing text.

Padding Outside QUIC Packet

Issue 3333 asks whether UDP datagram padding should be counted toward the server’s amplification limit. To prevent amplification attack, a QUIC server is not to send more than three times the number of bytes it received on the connection until the client address is verified. The current version (25) of the Transport Draft recommends padding Initial QUIC packets using PADDING frames. On the other hand, it does not proscribe padding the UDP datagrams that carry QUIC packets with garbage. At least one client implementation pads Initial packets in this manner.

One view is that what matters are bytes received from the client. Since garbage bytes that follow an Initial packet in a UDP datagram are bytes, those bytes should count. The opposing view, advocated by Christian Huitema and others, is that QUIC is a cryptographic protocol, which means that the only way to attribute bytes to a connection is by using QUIC packets.

In the end, the first view had more support. The next version of the draft will count garbage trailing bytes toward the server amplification limit.

Recommend ECN Strongly

Mirja Külhewind, one of the co-authors of the QUIC Operability Drafts, advocated for recommending ECN more strongly in issue 3373, for she deemed the current text to be too cautious. Agreeing with her were Brian Trammell (Google), David Schinazi (Google), and Lars Eggert. Eric Kinnear (Apple) reported that Apple turned on ECN for TCP three years ago and it hasn’t caused outages. Matt Joras (Facebook) and Roberto Peon (Facebook) were more cautious: “recommending ECN without deployment experience seems strange.”

After a rather prolonged back-and-forth, the consensus was that the current text in the draft is encouraging enough and that Appendix B describing a sample ECN support detection algorithm will stay until we have something better to recommend. Mirja will work on minor editorial text improvements.

There Be Extension Dragons

What happens when two QUIC extensions are not compatible? For example, they might modify an existing frame, such as the ACK frame, in conflicting ways. This is the subject of issue 3332.

Some proposed disallowing modifying existing frames. Igor Lubashev offered an algorithm for extending frames in an unambiguous manner. Others pointed out that extensions may be incompatible in a variety of ways, of which frame formatting is only one.

In the end, it was decided to let the problem resolve itself naturally – in chronological order as extensions get proposed — add a comment to the draft that there be dragons here. Dragons indeed.

DCID for Handshake Retransmission

Should the server be allowed to issue new connection IDs before the handshake is complete? This is the subject of issue 3348, raised by Marten Seemann. Why would a client change its Destination CID at that time? Brian pointed out that there is no reason for the client to do it. Yet, the discussion went on. Martin Thomson said that coupling handshake state machine with CID state machine complicates things, and so it is uncomfortable to forbid changing CIDs until 1-RTT packets. Eventually Lars stopped the back-and-forth, directing people most interested in this problem to come up with something during lunch.

The lunch consensus – I take it, people tend to be more agreeable when their bellies are full – was to allow the client to change DCID at any time. In other words, if a server does not want the client to do this, it should not issue new CIDs too early. An editorial clarification or two may follow.

ACK Generation Recommendation

Jana Iyengar (Fastly) opened issue 3304 before he and Ian Swett (Google) co-authored the Delayed Acks extension. (I think their collaboration was the result of the conversation in this GitHub thread). Jana pointed out that the current recommendation – produce one ACK for every two ACK-eliciting packets – results in too many ACK frames in the normal case. “Too many” here means that the large number of ACK packets sent and received affects throughput negatively. (This was likely one of the reasons for the poor nginx/quiche performance uncovered in our November benchmark tests.)

Several implementations already do not follow this recommendation. Is providing a recommendation in the draft and expecting people to ignore it the best we can do? The tricky part, of course, is making a specific recommendation that works well most of the time. The several schemes discussed in the GitHub issue all suffer from some form of degradation under some circumstances or when interacting with a particular type of congestion controller.

Not having come up with anything conclusive, we resolved to close this issue with no action. The current recommendation is good enough, at least for now. In addition, we have the Delayed Acks extension that we could use to experiment.

Issuing New CIDs in 0-RTT Packets

In issue 3423, Marten posed another corner-case riddle. Because the client does not have to remember the maximum number of active connection IDs the server supports, it risks overrunning this limit by issuing new connection IDs in its 0-RTT packet.

Corner cases are the bane of our Working Group. Discussing them takes up valuable time, time that would be better spent discussing more practical matters. This corner case took up about 1.5 hours – almost as much as all the Thursday’s discussions of the QUIC extension drafts combined!

The scope of the discussion is documented well in the minutes. None of us could put forth a plausible scenario for using NEW_CONNECTION_ID frames in 0-RTT packets. The voices of reason who advocated banning these frames in 0-RTT packets outright (mine and Christian Huitema’s) almost prevailed at one point, only to see our ten-votes-to-three advantage go down to one-vote-to-ten shortage. (Christian was remote and so his vote naturally was not counted.) Martin Duke (F5), who was running the vote counting, offered me a chance to “die on this hill,” which is an IETF expression for a last-ditch effort to object, akin to Demi Moore’s character’s strenuous objection in the movie The Few Good Men. Dying is a bit too dramatic for me, so I quipped, “I refuse to die!” to the clapping of three dozen pairs of hands. Thus was it decided that the client would just have to remember the server’s active_connection_id_limit setting.

Changing ACK Frequency

Jana’s and Ian’s presentation was about the extension they authored to reduce the number of ACKs generated.  I described their proposal in my previous post.

They explored the problem area, highlighting the tension between having too many ACKs reducing throughput because of the need to generate and process them and having so few ACKs as to cause retransmissions that also reduce throughput.

The Working Group was mildly enthusiastic about the possibilities this extension could offer. There is plenty of room for optimization, but there are also some hidden stones. Martin Duke asked whether the parameters communicated via the new ACK_FREQUENCY frame were advisory or mandatory. The answer is clearly advisory, as the sender of the ACK has its own limits or preferences that would trump those of its peer.

Most of us agreed that this work is important, and that experimentation should continue.

Multipath QUIC

Quentin De Coninck (Université catholique de Louvain) talked about multi-path QUIC. He introduced the concept of a QUIC uniflow, which is one half of the today’s QUIC path. Using uniflows, one can model MPQUIC effectively.

Quentin shared his implementation experience. A basic multi-path support in quickly weighed in at about 350 lines of code; a full-fledged implementation based on picoquic was 2500 lines of code – still a very reasonable number.

The Working Group peppered Quentin with questions. How does path prioritization affect the scheduler? Is it necessary to change QUIC and HTTP/3 APIs to make this useful? Does this work need its own Working Group?

The biggest chill was put on the proposal by Jana’s observation that there is no application that could use this capability. That is, lest it be completely transparent to the application. (This seems like a chicken-and-egg argument to me. An application utilizing multi-path capabilities cannot be created until those capabilities exist; and multi-path capabilities cannot be developed until there is an application that can use them.) We need a Research Group, said Jana, not a Working Group.

Packet Loss Signaling

Igor presented our packet loss signaling proposal.  (I say “our” because I recently became a co-editor of the draft along with Igor and Alexandre Ferrieux (Orange Labs)).  I touched upon the proposal in the previous post. The WG expressed several concerns. Matt pointed out that this proposal is unlike others because it modifies the packet headers and it could become a “de facto” extension that everyone is expected to implement. This change would burn both the reserved bits: what if QUICv2 needed more bits in the first byte? Does this change preclude other extensions from using these bits?

The real answer is that this functionality should have been part of the core protocol to begin with. These bits provide real value to network operators; without them, troubleshooting of QUIC network flows is much more difficult. Another extension (that doesn’t yet exist) that would want to use the reserved bits in a similar fashion can use the L bit for its square wave, thus differentiating itself. Further than that, obviously the space is limited, and no amount of ingenuity will be able to squeeze many extensions into two bits.

Other questions resembled those posed at the trial of Joan of Arc. Like the Virgin (although likely possessing less divine guidance), Igor parried admirably:

Marten: Loss detection and recovery in our spec is only advisory.

Igor: When you decide the packet is lost, you increment the counter.

Marten: This is an implementation decision.

Igor: Yes, when you decide it’s lost you increment the counter.

Marten: So, the network needs to know your algorithm.

Igor: No, the assumption is that if the sender thinks it’s lost, then it’s lost.

The extension was deemed important enough. To quote Igor, “we need this to make the Internet better.” Mark Nottingham (co-chair of the working group; Fastly) directed us to participate in the experimental QUIC DISPATCH meeting at IETF 107 in Vancouver in March of this year.

The Last Lunch

The Interim wrapped up early: around half past one on Thursday.  About half of us headed for free lunch at Google cafeteria, which was just down the corridor.

The food is fancy at Google Zurich. The “small plates” concept is in fashion there as well, so I got myself two plates. And a sandwich.

I sat across from Junho Choi (Cloudflare), with whom we talked shop: QUIC performance and how it is affected by ACK rate, quirks of Rust and C++ programming, and QUIC deployment issues.  Later we were joined by Lucas Pardue (Cloudflare), the newly minted QUIC WG co-chair.  We discussed the events of the past few days and assessed the results of the Interim.

As usual, it was great to share implementation experience with like-minded people. I look forward to comparing notes with them again.

The Chagall Windows

I stepped out from the Google building into a fresh and sunny winter afternoon.  After several gloomy, rainy days everyone was visibly in a better mood. I hurried to the Fraumünster Church while the sun was still reasonably high.

Marc Chagall created these three (and three more, for a total of six) beautiful stained-glass windows for the Fraumünster Church in Zurich.  These were installed in 1970, when he was 83. He started doing this type of art late in life. Fame had come to Chagall earlier for his paintings, about ten of which are on display in the Zurich art museum (Kunsthaus).

The church itself is a reincarnation of previous churches, which have existed on this spot for the last 1200 years.  The crypt reveals parts of the original church’s foundation. What were the names of the workers who cut and laid those stones? – I wondered – Were they happy or sad? Did they know that what they had wrought would be still around after so much time?

Like the builders of the newer church, we base the workings of a new protocol on an old foundation. Like Chagall’s, our conception of what could be must be fitted into a canvas of a predetermined size. If we be granted only a fraction of those craftsmen’s and artist’s inspiration and perseverance, then our project – QUIC — will surely be successful.

“PLEASE TAKE NO ACTION!”
– PSA on Cloudflare’s intercom during a fire drill, 5/23/2019, London QUIC Interim Meeting

The QUIC Working Group met for its regular Interim Meeting last week. This time, it was hosted by Cloudflare at its headquarters in London. Once more, the author attended the meeting remotely.

Interop Results

As usual, a two-day interoperability hackathon preceded the interim meeting proper. The Interop was held Monday and Tuesday. The number of QUIC implementations has grown to about two dozen. There are now QUIC implementations in C, C++, Erlang, Go, Java, Objective-C, Python, Rust, and TypeScript. Most of them already implement the month-old (that’s old!) Internet-Draft 20 QUIC transport and about half of them do HTTP/3.

Our own implementation, lsquic, successfully fetched a resource using HTTP/3 from ten servers; eight HTTP/3 clients succeeded fetching a resource from our server implementation. Two implementations already support server push. This is on our to-do list.

Alan Frindell (Facebook), our old friend and editor of the QPACK draft, found a bug in our QPACK library, ls-qpack. A drawback of having an early implementation is that one becomes subject to an unusual category of bugs: specification changes. In this case, one of the default QPACK settings changed from 4096 to 0 – but the code did not. On the bright side, the bug was easy to fix.

Connection ID Grows

The Interim Meeting commenced on Wednesday with discussion of Connection ID length.

Over a year ago in Melbourne, the proposal to grow the CID from 8 bytes was first floated. Since then, the CID transformed from fixed to variable length and grew to a maximum of 18 bytes. Martin Duke (F5) has been working on QUIC Load Balancer specification and ran into a limitation: 18 bytes is just not enough for a multi-tier load balancing solution.

The proposal is to increase the maximum Connection ID size from 18 to 48 bytes. This change will have a significant effect on the wire format, as four bits no longer suffice to encode 49 (0 through 48) values.

[SIDEBAR] An acute reader has noticed that four bits are not enough to represent 19 (0 through 18) values, either. The way it currently works is that the set [0 – 15] is mapped to 0, [4 – 18].

An impact to our implementation will be unfortunate. We represent CID as a struct: four-byte integer to represent the CID length and 18-byte buffer to hold the ID. Together with padding, this structure weighs in at 24 bytes. Given that lsquic uses 8-byte CIDs, the overhead is 200%. The forecast CID growth will increase this overhead to 550%. To take this arithmetical exercise a bit further: each IETF QUIC connection averages eight source CIDs and eight destinations CIDs. This means that there will be (52-8)*16=704 bytes of overhead per connection.

HTTP Priorities

HTTP/3 has inherited HTTP/2 priority scheme – adjusted for the specifics of the QUIC transport. Exclusive dependencies are gone, and placeholders are used in place of zombie requests to keep priority trees stable.

Patrick Meenan (Cloudflare) and others have been researching how well – or, rather, how poorly – web browsers and web servers utilize HTTP/2 priorities. The answer is: overall, priorities are not leveraged effectively. In large part, this is due to problems in the HTTP/2 priority design.

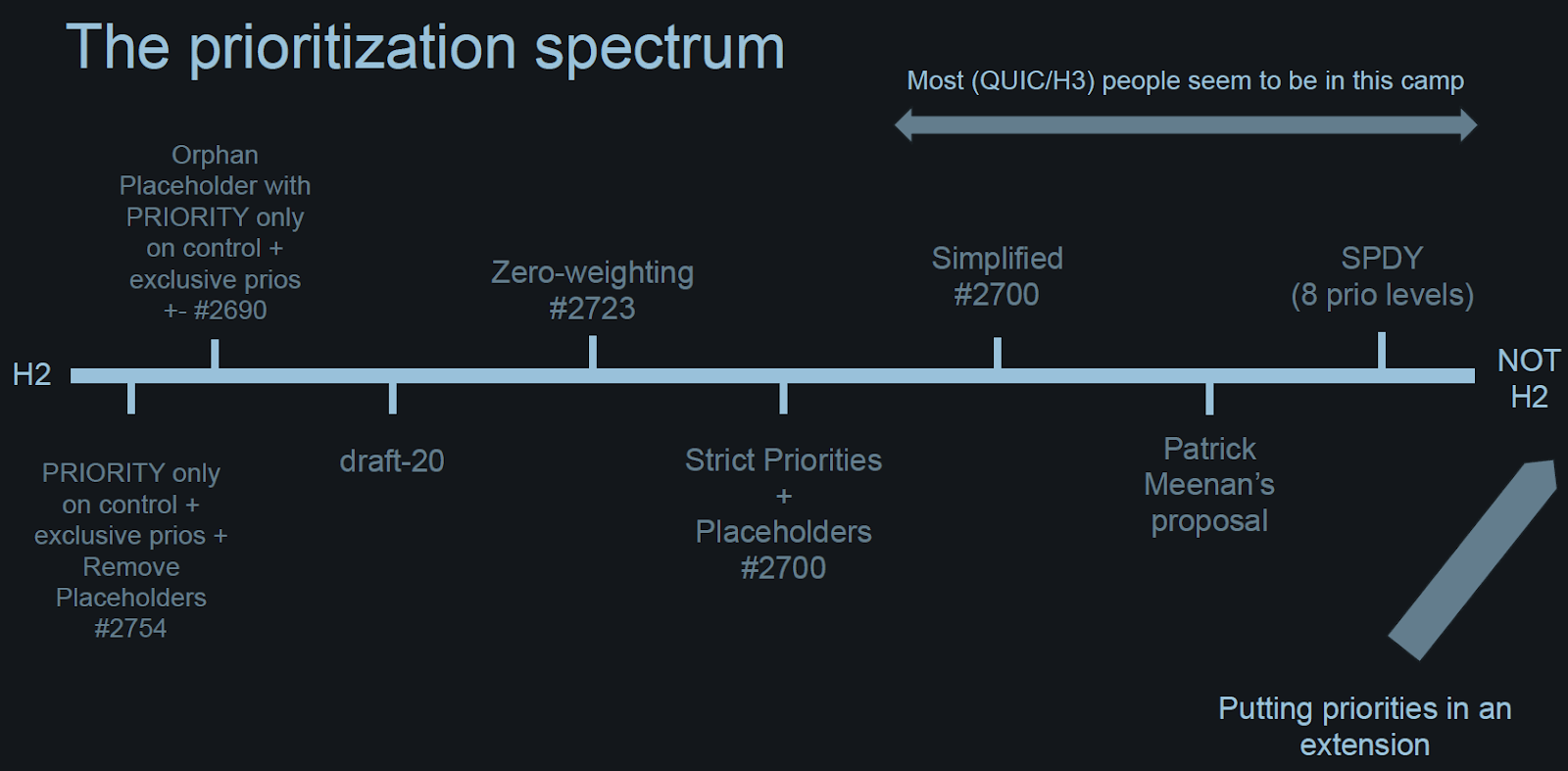

Patrick Meenan, Robin Marx (Hasselt University), and Ian Swett (Google) have each made competing proposals, while many others made various suggestions to them, creating what Ian called a prioritization spectrum:

The Working Group agreed that further work is needed on this in order to have an effective prioritization that will actually be used. It is possible that prioritization will be done as an extension: that way, it can be changed should a better design appear. Stay tuned.

Version Aliasing

Version aliasing is an attempt to prevent version ossification. QUIC handshake packets expose QUIC version information. In order to prevent middleboxes from allowing (say) QUIC v1, but dropping other versions, it has been proposed that a server may offer the client a selection of version aliases. The server agrees to recognize these aliases for a fixed period of time as equivalent of some other version. The client, then, can use one of these aliases in a subsequent connection attempt.

While the proposal is short, the implementation of this mechanism is sure to have some underwater stones. We hummed in favor of addressing the version ossification problem in v1 and so either this proposal, its variation, or something else entirely will likely make its way into the final QUIC transport draft.

Next Steps

IETF 105 takes place in Montreal at the end of July. Before that time, there may be another virtual (that is, not face-to-face) interop event, depending on when the next version of the QUIC Internet-Drafts drops. The biggest question mark in my mind is the HTTP priorities. We want to get it right – this means doing a lot of work, and a lot of work takes time.

“I apologize for being Martin Thomson.” – Martin Thomson, DoH WG Meeting, IETF 104, 3/26/2019

IETF 104 has come and gone. Held in Prague last week, the conference had plenty of interesting meetings. I wanted to follow the progress of the QUIC, TLS, HTTPbis, and DoH Working Groups. I attended the meetings remotely despite the inconvenient time difference.

Where are the browsers?

It takes two to tango. While there are many server implementations at various stages of development (for example, did you know that www.litespeedtech.com can be fetched using ID-18 version of the IETF QUIC?), there are no browsers that use IETF QUIC protocol. David Schinazi (Google) reported that Chromium only supports the QUIC handshake for now, while Eric Kinnear (Apple) said that Safari has a functional IETF QUIC branch.

Discarding Old Keys

As QUIC uses TLS 1.3, it must somehow support key updates. There have been several proposals how to do this. Martin Thomson (Mozilla) summarized them in his presentation to the Working Group (see slides). The august body, predictably, failed to reach consensus and thus compelled the chairs to empanel YADT (Yet Another Design Team) headed by David.

Network Tools

A trifecta of presentations on QUIC tooling engendered much enthusiasm among the TSVAREA meeting attendees. The presentations were

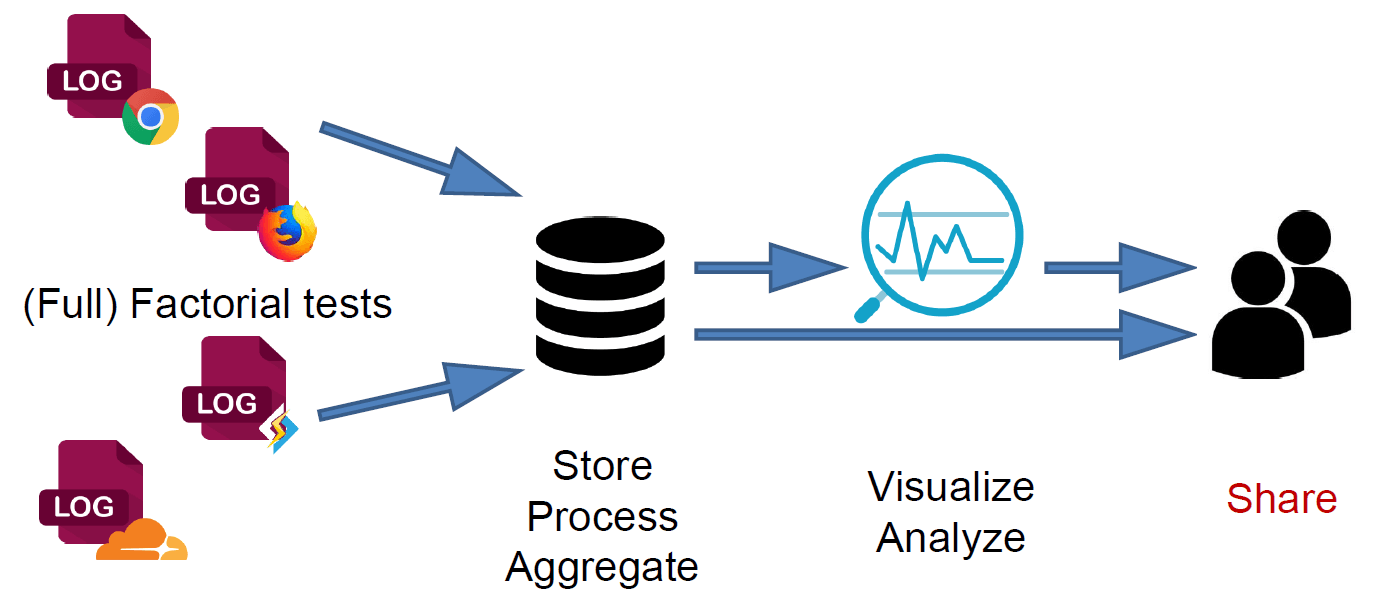

• Logging, Tooling and Debugging for Modern Network Protocols. Robin Marx (Hasselt University) has been researching how and what information to log in order to be able to generate informative pictorial representations of various connection events. Robin proposed to create a new, structured log format (tentatively named qlog), which, when used by both endpoints, will facilitate debugging or troubleshooting network issues. The collection of use cases he has compiled is impressive. The audience even proposed creating a dedicated qlog Working Group to log everything – and it just may happen. Stay tuned for updates.
• QUIC tracing. Victor Vasiliev (Google) has been working on logging and tracing network events since he was an intern at Google (while still an intern, he was the one who spotted a symptom of the Linux Cubic quiescence bug). Victor’s tooling focuses on connection performance and also relies on rich data logging.
• QUIC Logging: The In-Network View. Jari Arkko’s (Ericsson) presentation described spindump – a tool to observe and display characteristics of a QUIC connection using the QUIC spin bit. The spin bit is a controversial property of the QUIC short packet header and it was the subject of much contentious debate. (LiteSpeed position from the start was to support the inclusion of the spin bit into the QUIC protocol. We implemented spin bit support a few weeks ago and deployed it on our test endpoints as well as www.litespeedtech.com).

Mind the Gap

The QUIC WG Interim meeting scheduled at the end of May in London may become the last our WG holds. As usual, the official IETF WG business will be preceded by two days of interop, which will target the (yet unpublished) 20^th revision of the IETF QUIC Draft.

The QUIC WG chairs, Lars Eggert and Mark Nottingham, instructed the editors to plan for submitting the drafts to the IESG in July. In the next sentence, they qualified that date as “aspirational…”

Stay tuned!

Last week, I attended the QUIC Working Group Interim meeting in New York City. Our group is one of many at the IETF. We are working on standardizing the IETF QUIC protocol. The QUIC protocol that is currently used on the Internet is called Google QUIC. It started as a Google experiment between the Chrome browser and some of the Google services a few years ago. We added support for Google QUIC to the LiteSpeed Web Server and ADC products in 2017. At around the same time, Google handed off the protocol to IETF for standardization. This way, everyone can implement QUIC and reap the benefits of a more performant web. I’ve blogged about previous meetings.

This meeting lasted four days: Monday and Tuesday were dedicated to the Interop Hackathon, while Wednesday and Thursday we worked on the QUIC drafts (agenda; minutes). What follows is a recap of the proceedings as well as some observations.

I have been looking forward to this Interim. It was to be the second QUIC Interim Meeting that I attended in person. Unlike the first meeting in Seattle, this one would be a cinch to attend: jump on a train and I am there!

On the morning of Monday, September 17th, I joined thousands of other commuters making their daily trip to the city. Young and old, white and black, skinny and well-rounded: all were on their way to earn their living. In this strange zone, where one is surrounded by people, but yet all alone, my mind wandered as I looked out the train window at houses, roads, stacks of railroad ties, puddles, junkyards, flags, trucks, bridges, baseball fields, and an occasional tent of a homeless person. Two hours door-to-door.

Lars Eggert’s employer, NetApp, was the host of the meeting. Each day at 9:30 am, we assembled in a comfortable conference room on the 19th floor of 285 Madison Ave.

View from the 19th floor (Madison and 41st Street)

The Interop Hackathon

The Interoperability Hackathon — or the Interop — is an opportunity for the different implementers of QUIC to meet face-to-face and to find and fix bugs quickly. This time, there were two interop events at once: the QUIC transport interop and the QPACK interop. I participated in the second one.

QPACK is the HTTP header compression protocol. Like most of our software, the LiteSpeed QPACK library is open-source. There are a few other open-source as well as closed-source implementations. The way to test for compatibility is to encode a list of headers using one QPACK implementation, decode the result using another QPACK implementation, and check whether the result matches the original input.

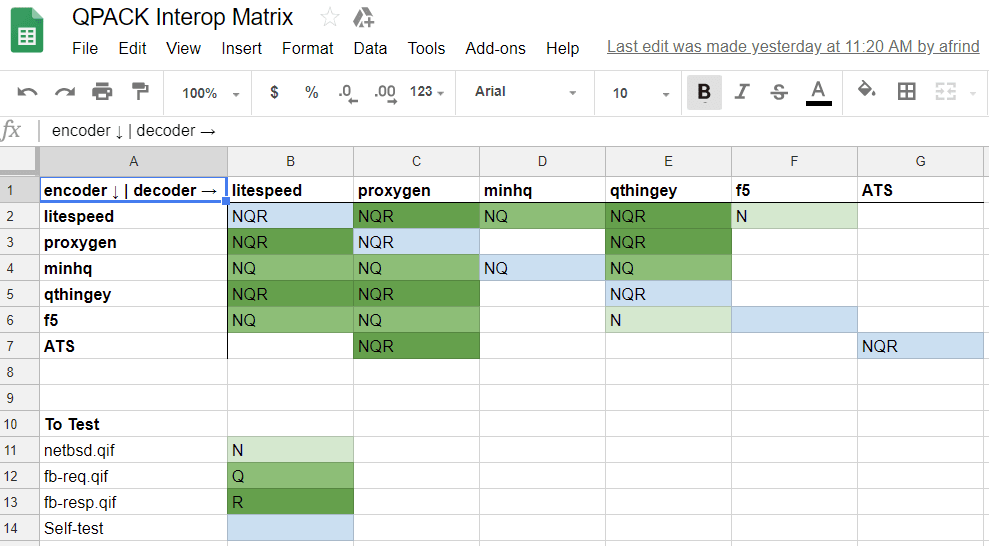

By the end of the second day, the participants — Alan Frindell (Facebook), Martin Thomson (Mozilla), Mike Bishop (Akamai), Roma Kane (F5), Masakazu Kitajo (Apache Traffic Server), and yours truly — found and fixed dozens of bugs.

Spin Bit Experiments

On Wednesday, the official part of the QUIC Interim commenced with three spin bit experiments presentations. If you remember, the latency spin bit is meant to aid network operators — in other words, so oft-maligned “middleboxes” — to debug issues with QUIC connections. Because QUIC uses UDP and encrypts almost everything in its packets, the observer lacks most of the information that is present in a TCP connection.

Alexandre Ferrieux of Orange was first with his Spin bit and beyond @ Orange. He hit rough terrain early, as several people, including the chairs, interrupted him. The Working Group consensus, they said, is only to expose the spin bit. Alexandre’s experiments included additional square sequence and end-to-end bits to provide information on upstream loss and downstream loss, respectively. Thus, he did not have a chance to present all the reasons why one would want those three bits of information in each packet. Nevertheless, the reasons are listed in his presentation and well worth a read.

Next was Marcus Ilhar of Ericsson. His presentation was subtitled Testing the Robustness of the 1-bit Signal. He modified quic-go to add the spin bit and wrote a middlebox simulator that both introduced reordering and loss and measured the spin bit. The conclusion is that the spin bit is indeed useful for measuring the RTT of a connection.

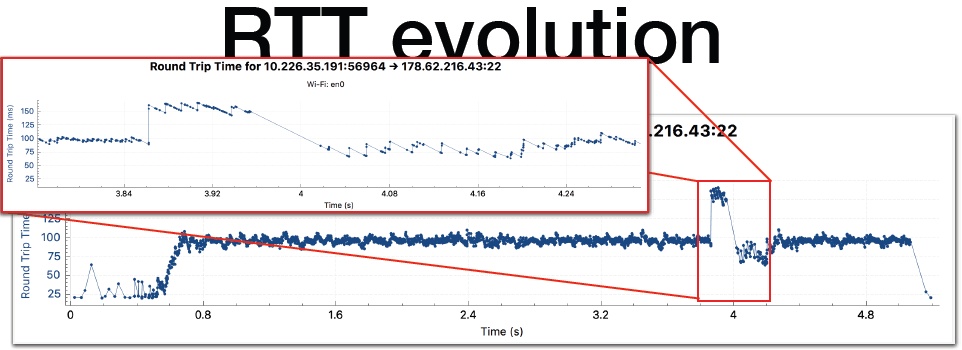

Brian Trammell’s (ETH Zürich) presentation was Intraflow Performance Diagnostics.

As he was waiting to board his plane, so went Brian’s story, he wondered why uploading images from his laptop to his home computer was so slow. He broke out tcptrace and analyzed the information it presented. The main insight is that one does not have to have information about congestion window to debug network problems: the RTT information is enough. The RTT information would be provided by the spin bit.

Gutenberg Bible

I craved soul food more than the earthly sustenance and so I visited the Morgan Library & Museum during lunch. Among other rare items, its Treasures from the Vault exhibition featured a real Gutenberg Bible.

Only 180 copies (120 on paper and 60 on vellum) were printed in 1455. Of those, just 49 are extant, 3 of them at the Morgan Library. The paper copy on display is a large, beautifully typeset and bound, tome.

Speed Dating

Martin Thomson’s selection of GitHub issues was subjected by what was called “Speed Dating.” Each of the issues was given three minutes for discussion by the group. Simplification of PNE (packet number encryption) was picked up by EKR (Eric Rescorla) to research, while most of the other issues were closed with no action.

Interop Results

Christian Huitema (Microsoft) and Alan Frindell updated the participants with the results of the interop. Among notable developments, Christian highlighted that there were two successful connection migrations and that Martin Thomson and Kazuho Oku (Fastly) are close to having interoperable HTTP stacks. Alan summarized the QPACK Interop and informed the group that Google, too, has a QPACK implementation close to shipping.

Wrapping QPACK Absolute Index

Alan led the discussion around my proposal to wrap the QPACK absolute index in order to improve compression. His presentation implied that the compression gains are not that significant, which I had to contradict.

This is because, I said, HTTP is not just for the web. Long lived connections or connections with high volume of requests (or both) may show significant degradation in compression performance. I ran a simulation of a scenario wherein server reply contains three headers — never-changing :status and content-type, and cookie that changes every ten requests. 10,000 responses have 0.13 compression ratio when absolute index wraps versus 0.15 when it does not (14% worse compression ratio). 100,000 responses is 0.13 compression ratio versus 0.16 for 19% deterioration. So the difference is not insignificant at all.

The room had to concur. Alan presented us with three options:

1. Do nothing;
2. Wrap the encoded value of the absolute index; or
3. Change the definition of the absolute index.

(3) is the largest change, one that I originally proposed. There was no clear consensus in the room, with a bunch of people, including Martin Thomson, saying that we should do nothing. On the other hand, Brian Trammell and others argued in favor of wrapping. This change, said Brian, reflects the spirit of QPACK. We had to go to hums. The first hum would be whether to do nothing (1) or do something — (2) or (3). If the first hum resulted in doing something, then we’d hum to select (2) or (3).

The first hum was close, with one of the chairs, Mark Nottingham (Fastly), having to interpret it. His interpretation was that we should do something. It was decided that instead of humming, Alan, who is the editor of the QPACK draft, would select between (2) and (3) himself. The humble man was not particularly happy with the task assigned to him, but resigned himself to carrying the burden.

Designer Quadrupeds

Camel: Where a man belongs.

They say that the camel is a horse designed by a committee. The Working Group has a pattern of delegating a group of people to work on a component of the protocol and then subjecting their findings to on-the-spot (read: shallow) analysis. This is like the inverse of bikeshedding, where the body is eager to argue about, and change, the design of a nuclear power plant. This happened in Melbourne to the Compression Design Team, where weeks of work were discarded in twenty minutes and we ended up with the suboptimal solution that is QPACK. The index-wrapping proposal was close to suffering the same fate at the hands of the people who hummed for option (1). I understand the desire to complete the work more quickly, but we should not settle for shabby work!

Connection ID Management

Mike Bishop presented the output of the Connection ID Design Team. Because I participated in this design team, many of the issues raised by the working group sounded familiar to me; the design team had been over them several times.

Header Bits

Martin Thomson talked about the bits in the first byte of the QUIC packet. It would be nice to be able to multiplex QUIC and DTLS, for example.

QUIC Trace Tool

Victor Vasiliev (Google) described the quic-trace tool developed by Google. A QUIC peer can make a recording of a QUIC connection in a special format. quic-trace creates a visualization of the connection using this recording. The visualization can be used to analyze connection performance.

Wayne Thiebaud

Wayne Thiebaud is an American painter. During Thursday’s thankfully long — 90 minutes! — lunch, I again rushed off to the Morgan Library & Museum to view an exhibition of some of his works. While mostly known for his paintings of everyday objects such as cakes and gumball machines, I liked his charcoal drawings the most.

Flow Control Deadlocks

As part of my work on the Compression Design Team, I discovered a deadlock condition in QCRAM in January of this year. QPACK solves the problem by cautioning the implementers to write to encoder and data streams in specific order. This was part of Mike Bishop’s Flow Control Gotchas presentation. It was interesting to observe that one could also deadlock with just one stream, for example, if a non-streamable frame is preceded by its length and the application does not read the frame until all of it is available.

I asked for an example of a non-streamable frame. Mike replied that the header block is one such example, to which I nodded. Later, however, I changed my mind: it is not possible to write the header block as a stream, because it must be followed by length, but it is possible to read the header block in streaming mode. This is exactly what our QPACK library does. I will bring this up on the mailing list next week.

Upcoming Meetings

The last bit of business was to plan the next meetings. After a bit of haggling, we agreed that the pre-Bangkok (IETF 103) Interop target will be based on Internet Draft 15 (this Interop was targeting ID-14). The January Interim meeting is likely to be held in Tokyo.

The Road Ahead

QPACK is almost done. My suggestion that the encoder stream framing be removed was accepted and made it into the current QPACK draft. The wrapping of the absolute index just squeaked through this week, and this is the last non-editorial change that I foresee.

On the other side of the spectrum, the QUIC transport draft is still rather shaky. Version negotiation, first header bytes, and packet number encryption are all liable to change. I think there is virtually no chance that we make the November deadline.

The good news is that there is definitely progress. If only we can stop ourselves from changing the transport every few months, we will be in good shape.
